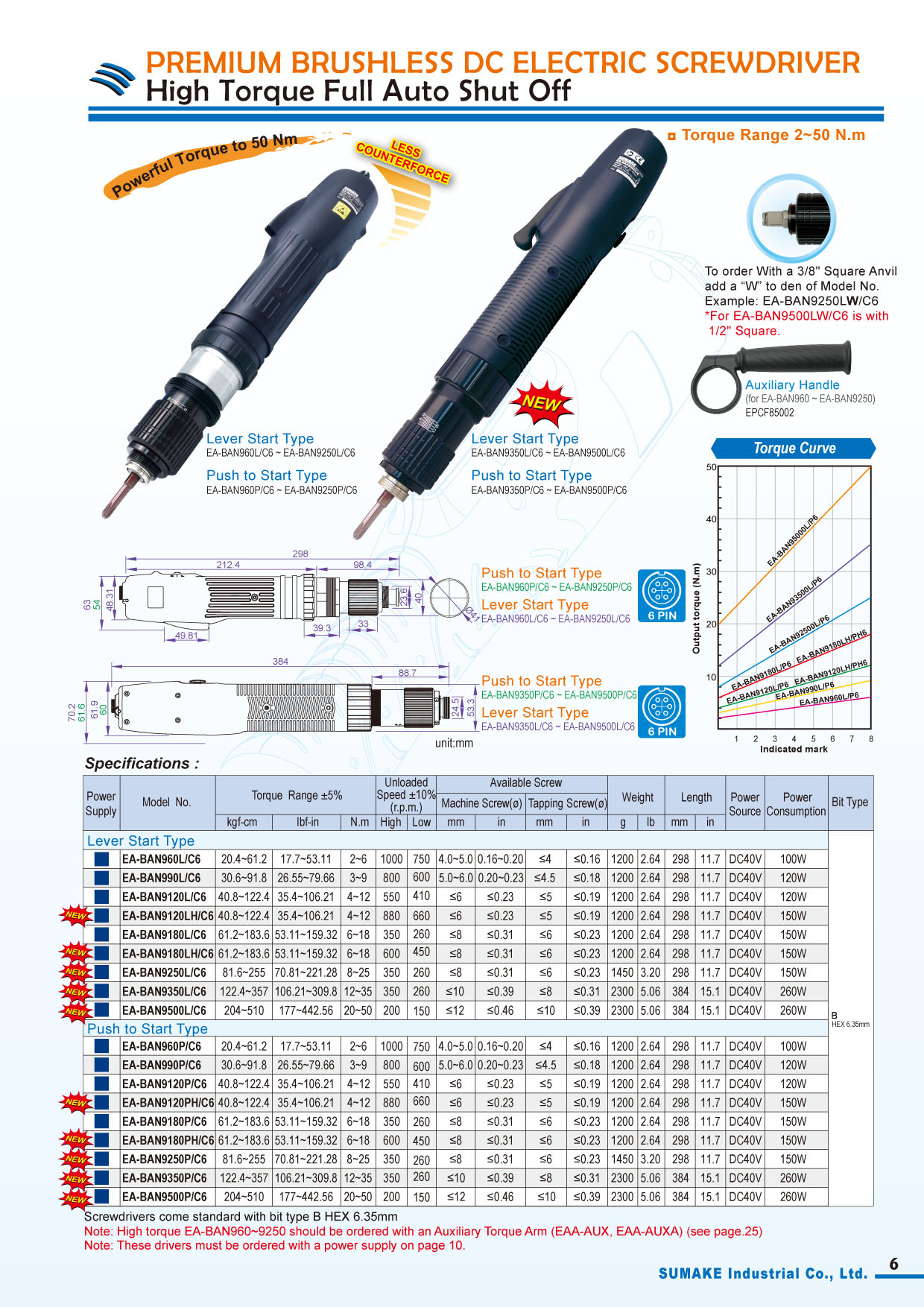

BRUSHLESS FULL AUTO SHUT-OFF DC40V, PUSH TO START TYPE
ELECTRC SCREWDRIVER (6PIN)
Model # EA-BAN990P/C6
| Model # | EA-BAN990P/C6 |
| Torque Range | 30.6- 91.8 kgf-cm (3- 9 Nm) |
| Uploaded Speed | 800 r.p.m. (+-10%) |
| Available Screw
Machine Screw Ø |
5.0-6.0 mm (0.20-0.23“) |
| Available Screw
Tapping Screw Ø |
≤4.5 mm (≤0.18“) |
| Weight | 1,200g (2.64 lb) |
| Length | 298 mm (11.7“) |
| Power source | DC40V |
| Power consumption | 100W |
| Bit Type | HEX 6.35mm |
☆Recommend: To be ordered with the POWER SUPPLY #SP-B40S500T/C6
(Refer the below photo)
.jpg)
.jpg)
Application
* Auxiliary Arm with screwdriver
* Telescoping Torque Arm with screwdriver
